Flexible polyester coatings
Coilcoat coatings flexible polyester finishes designed for a wide variety of internal applications like false ceilings, tiles and pattern. These coatings provide superior aesthetics in all gloss range and various patterns. They have excellent formability with our without primer. Gloss and abrasion resistant clear coat can be applied for enhanced aesthetics and perfomance.
Benefits
Coilcoat coatings provide a number of unique benefits including:
Superior scratch resistance
Good dirt and stain resistance
Excellent overall adhesion
Great flexibility and formability
Substrates:
Aluminum
Colors
Coilcoat coatings are available in a wide spectrum of popular industry colors
End use

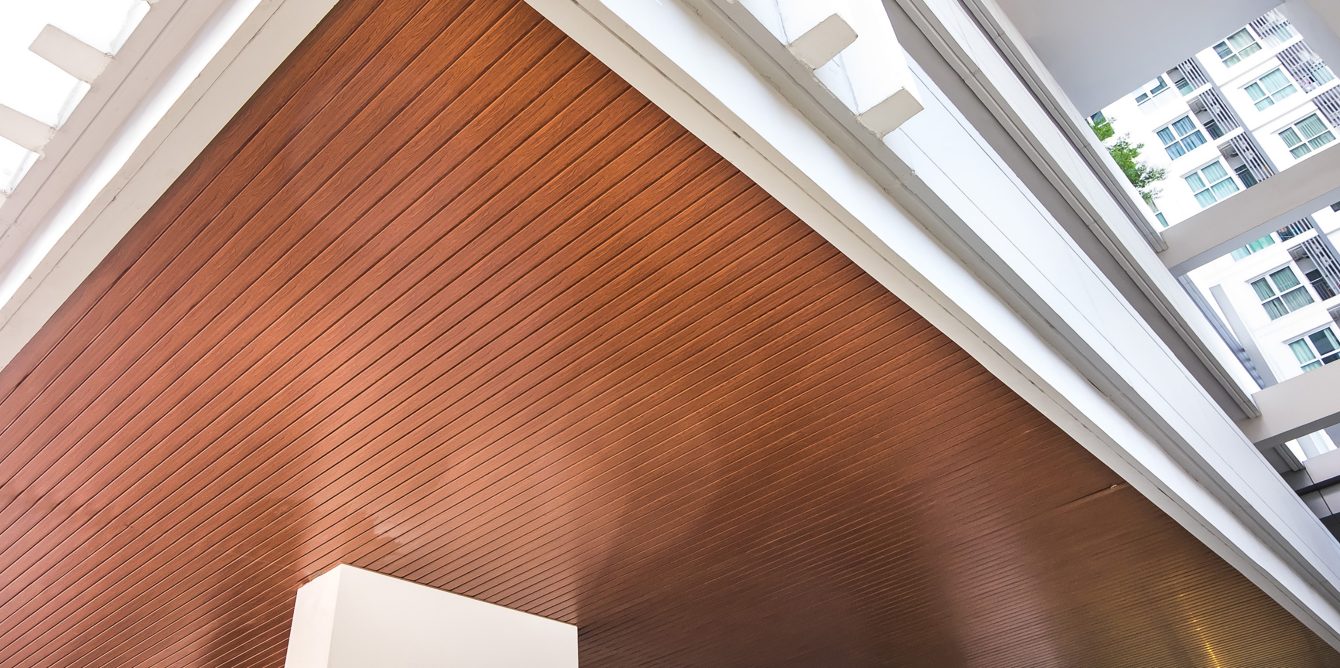

Coilcoat coatings are ideal for long-life internal use on false ceiling, internal wall
panels and enclosures Falese ceilings
Tiles for ceiling
Internal wall panels
Curtain rods and venetian Blinds
Canopies and awnings
|
PRODUCT DATA SHEET |
|
|
PRODUCT CODE |
TT450 |
|
NAME,SYSTEM |
HG BLACK,EXPOXY |
|
SHELF LIFE |
6 MONTHS FROM THE MFG DATE |
|
COATING PROPERTIES |
|
|
DENSITY(WEIGHT PER GALLON): |
08.14±0.2lbs/gal |
|
WEIGHT PERCENT SOLIDS: |
36.6±2.00% |
|
VOLUME PERCENT SOLIDS: |
29.0±2.00% |
|
PACKAGE VISCOSITY： |
28-33 sec with Zahn#4@77°F |
|
VOCs PER SOLID GALLON: |
2.74lbs/gal |
|
HAPs PER SOLID GALLON： |
N/A |
|
PERCENT HAPS BY WEIGHT: |
N/A |
|
PERCENT LEAD BY WEIGHT: |
LEAD FREE |
|
WAX OR WAX-FREE SYSTEM |
WAX FREE |
|
APPLICATION PROPERTIES |
|
|
APPLICATION METHOD: |
Direct-Roll Coating |
|
APPLICATION VISCOSITY: |
28-33 sec with Zahn#4@77°F |
|
REDUCER: |
DIACETONE ALCOHOL |
|
SUBSTRATE： |
ALUMINUM |
|
PRETREATMENT: |
STD |
|
REQUIRED**CLEAR COAT&DFT： |
N/A |
|
REQUIRED**PRIMER COAT&DFT： |
N/A |
|
PEAK METAL TEMPERATURE: |
435°F-450°F |
|
WET FILM THICKNESS: |
1.72-2.07mil（s） |
|
DRY FILM PROPERTIES |
||
|
DRY FILM THICKNESS(PRIMER,TOP): |
Pmr：N/A |
TOP:0.5-0.6mil（s） |
|
DRY FILM THICKNESS(CLEAR,TOTAL): |
Clr：N/A |
TOTAL:0.5-0.6mil（s） |
|
PENCIL HARDNESS: |
F-H with Turquoise Pencil |
|
|
SOLVENT RESISTANCE： |
100+Rub Cycles with MEK |
|
|
GLOSS/SHEEN 1（Pretreatment）: |
80+@60° |
|
|
GLOSS/SHEEN 1（Pretreatment）: |
N/A |
|
|
T-BEND： |
0T-2T No Tape off |
|
|
IMPACT(RESERVE/DIRECT): |
24 in-lbs No Tape off |
|
|
ADHENSION: |
5B,No Tape off |
|
|
METAL MARKING RESISTANCE: |
No Metal Marking |
|
|
TOTAL SOLAR REFLECTANCE: |
N/A |
|
|
LUMINOUS REFLECTANCE FACTOR: |
N/A |
|
|
THEORETICAL COVERAGE： |
845 sq.ft./gal @0.55mil（s） |
|
|
COLOR ON-LINE: |
VISUAL |
|
|
ADDITIONAL NOTE: |
|
|
